Allen & Heath ZED-12FX

Mixer :

• 6 Mic/Line inputs

• 3 Dual stereo inputs

• DuoPre Pre-amplifier with 69 dB Gain Range

• 4 Aux Sends

• USB Send and Return

• Insert per channel

• High pass filter

• Mute per channel

• Built-in effect processor with 16 presets

• Tap Delay and editable parameters

• Stereo Return

• 2-Track Retur

• 6.3 mm and 3.5 mm Headphone connection

• Stereo Record output

• Alternative Stereo output

• Mono sum of LR output

• Master LR

• 12-Segment LR displays

• Master control for Aux 1 and 2

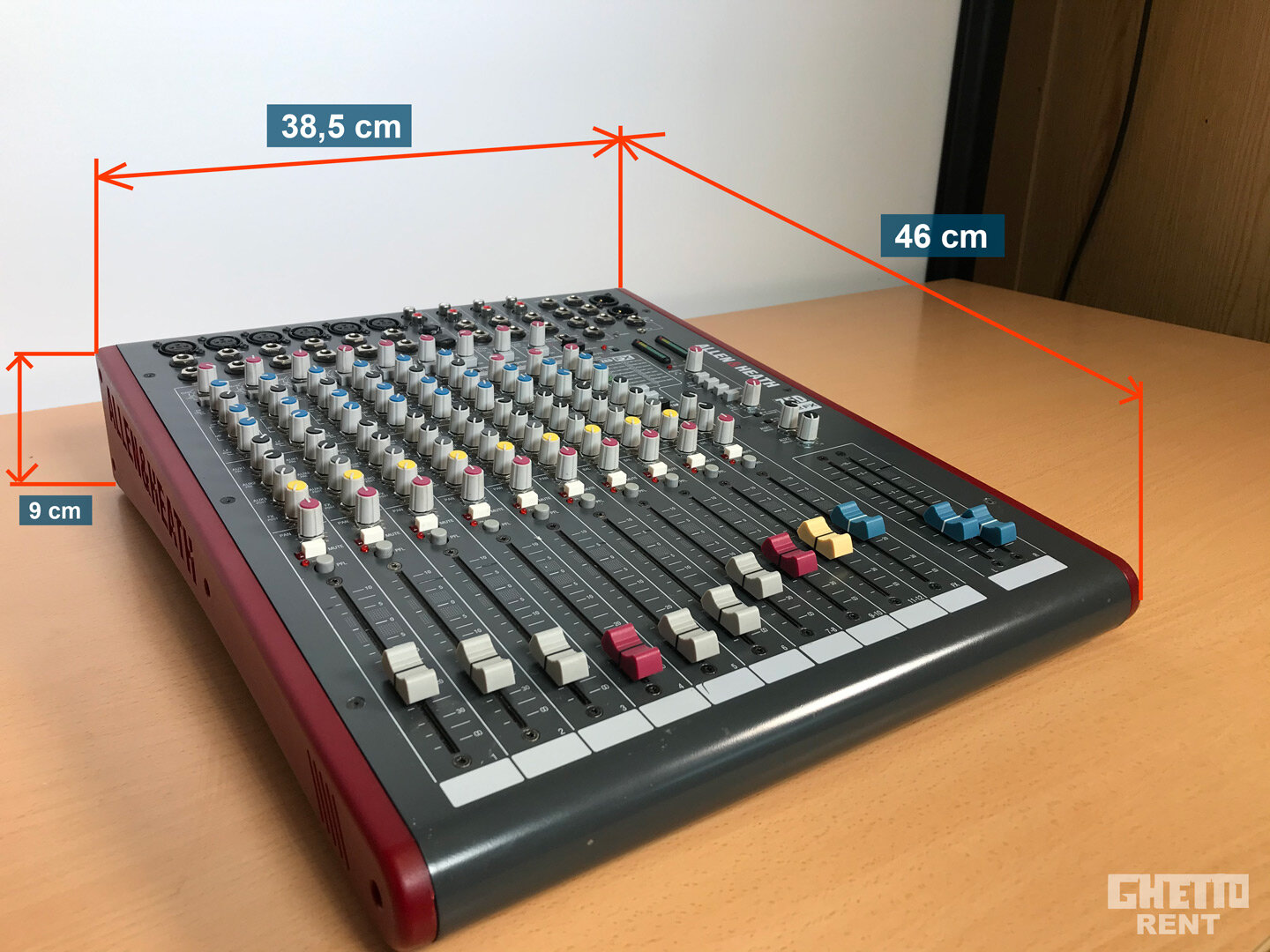

• Dimensions: 385 x 95 x 465 mm

• Weight: 7,4 kg

Further Information :

• Parallel usable Channels 10

• Mic Ins 6

• Stereo Ins 3

• Master Out XLR

• Number of Pre Aux max 2

• PC Interface USB-B

• Multitrack Recording No

• USB/SD Direkt Record No

• PFL Yes

• Effect Processor 1

• USB Play No

• Bluetooth Play No

• Matrix Mixer No

• Zones 0
